ALUMINIUM MELTING EQUIPMENTS

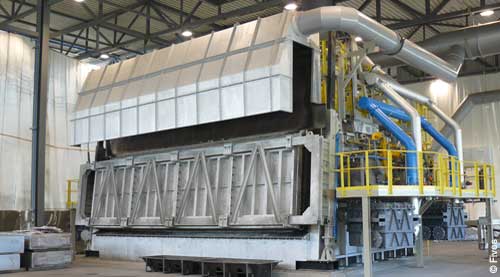

Aluminum Melting furnace
Half Tilting Furnace

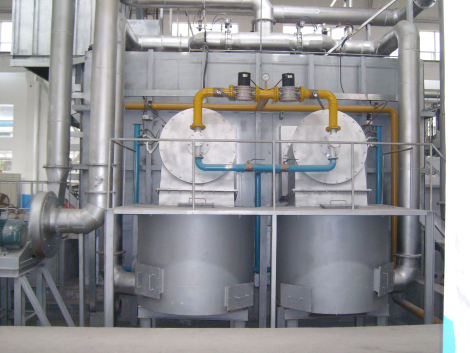

Regenerative square Aluminium Melting Furnace
TYPE : HALF TILTING / STATIONARY REGENERATIVE TYPE
PROCESS : MELTING / HOLDING
CAPACITY : AS PER REQUIREMENT
FURNACE CAPACITY : AS PER CUSTOMER REQUIREMENT
CHARGING METERIAL : SCRAP / INGOT
FUEL : FO / DIESEL / LDO / GAS
REFRACTORY DETAIL UP TO BATH LEVEL
INSULATION BRICKS : 115 MM
ACC INSULATE – II : 50 MM
IS-8(ST.) BRICKS : 115 MM
H.A.70% BRICKS : 115 MM
ABOVE BATH LEVEL
HYSIL : 50 MM
INSULATION BRICKS : 115 MM
IS-8(ST.) BRICKS : 230 MM
ROOF
INSULATION BRICKS : 115 MM
IS-8 E/A BRICKS : 230 MM

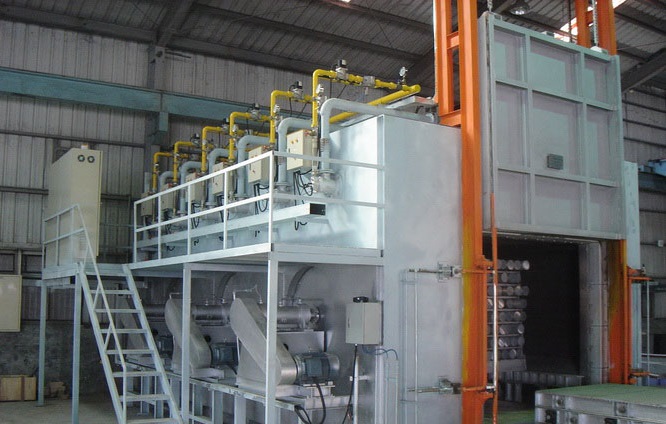

Billet Homogenizing Furnace
Function: Billet Homogenizing Furnace is the equipment which deals with billets heat treatment after casting. The function is to eliminate the residual interior stress and non-uniform metallurgical structure which generates during billet casting,so that improve the performance of extrusion process,reduce the extruding pressure and increase the production efficiency and aluminium product quality.
Technical Datas:
FURNACE PARTS : OIL OR GAS FIRING / ELECTRICAL HEATING HOMOGENIZING FURNACE, FORCE-AIR COOLING CHAMBER AND STOCK TROLLEY
FURNACE CAPACITY : AS PER CUSTOMER REQUIREMENT
HEATING TYPE : ELECTRICAL,DIESEL,LPG, NATURE GAS, CITY GAS
FUEL : FO / DIESEL / LDO / GAS
BILLET LENGTH : AS PER REQUIREMENT
